Making Sense of Night Vision

We begin with the AN/PVS-4 Night Vision Device (NVD), a large "Starlight" scope or image intensifier (Colonel Corso says is captured alien technology) that attaches to the top carrying handle of the M16/M4 5.56mm rifle/carbine or the M60/M240B Medium Machine Gun, and AT4 anti-tank/assault rocket.

Its heavy.

If you carry it on during the daytime, its daylight cover may fall off and become lost since its not dummy corded. We need to fix this! Then without its special cover you can't zero it safely during daytime. Its knobs also like to fall off.

But--it can be made to work using "AA" batteries via an adapter and on the weapon it doesn't need zeroing changes between shooters--everyone has the same eye relief by mashing into the rubber eyepiece. Its VERY accurate once zeroed. We were able to (Battlesight ZerO) BZO the AN/PVS-4 and get amazing accuracy using the unit's indoor range. My advice: make it your OP/LP weapon, and empowerment for MGs and AT4 rockets in night operations.

The main drawback is as a scope, the AN/PVS-4 NVD is only occasionally used, its not an aid to Soldier night vision to move about except from a static observation/aiming position. If you wear image-intensifier Night Vision Goggles (NVGs) you'll have to flip them up and then look into the AN/PVS-4 NVD to aim/fire, a clumsy set-up.

So to aim/fire wearing NVGs, we have the AN/PAQ-4C aiming light which is visible only when wearing NVGs. There is also an AN/PEQ-4 which does the same thing but has a flashlight-type illuminator again only works if you are wearing NVGs. Both emit red laser beams which can be seen however by the enemy if he has night vision devices (he does). The AN/PAQ-4C and AN/PEQ-4 both fit on the end of the handguard so they don't block the iron day sights or collimators/scopes. Then there are visible light red laser beams that place a red dot or cross-hair on the target, which is helpful if you want your target to have a chance to surrender. All's well, right?

Not quite.

The weakness is the Night Vision Goggle itself, in situations where its dark, but not dark enough to wear NVGs, you need to use your natural eye vision. Problem is that its still TOO DARK to aim with iron sights.

While you can and should use collimator/reflex sights in this case, you still may be stumbling around in the dark.

Confused yet?

The thinking here is to have a powerful flashlight attached to the end of your weapon to momentarily "flash" onto the target to insure its not a friendly, helpful in room clearing in MOUT situations. This is what the AN/PEQ-4 does in infared, but you have to be wearing NVGs.

So then what do we need?

Myriad, bewildering array of accessories for the M16/M4 family


The situation is so bad, the Army at the urging of the 82nd Airborne Division is instituting a "Master Gunner" program to create a subject matter expert (SME) in every infantry unit who will know the exacting details to operate the myriad of night vision devices to create an Advanced Infantry Marksmanship Strategy and Standards (AIMSS) which can be seen encapsulated equipment-wise on this link:

U.S. Army Digital Library


Infantry Magazine

Merging Technology And Training: The 82nd Airborne Divisions Master Gunner Program

Master Marksmen In The Light Infantry

How to Zero and Maintain the M68 Close Combat Optic


In my opinion, we need ONE laser beam emitter, an "AN/PAQ-2000" so to speak, that can either project a visible or invisible red dot, or broad IR illumination. And it needs a powerful flashlight built-in which can accept colored lenses. It needs both a pressure switch and a steady on/off switch. This replaces the AN/PAQ-4C and AN/PEQ-4, the myriad visible laser sights and the cumbersome flashlight mounts. The projected dot is useful for close-range, fast moving situations where you are moving too fast to aim/shoot but need to place-the-dot/shoot. The OICW folks say that's what they achieve with their integrated electronics package on top of their new weapon, though its monstrously too heavy.

During the day time you need a collimator/reflex sight, like the Armson OEG (hero at Son Tay), ACOG or Aimpoint Comp M/ML adopted by the U.S. Army as the M68 reflex sight. The M68 mounts on top of the handguard like the IDF Elbit sight. Once zeroed, they work for any shooter that fires the weapon, like the AN/PVS-4 NVD.

In other words, you no longer use the iron sight rear or front sights with the M68.

In contrast, with OEG/ACOG you can still look UNDER them and use the iron sights, and in the case of the ACOG you have a scope to look farther out and identify targets and observe like binoculars, call-for-fire etc. This is why Army SF adopted the ACOG and the ACOG reflex sight (clone of the IDF's Elbit or M68 but doesn't use batteries--HELLO? why didn't we buy this???). My advice is to put better MILS scales in the ACOG to facilitate calls-for-fire. Unlike the M68, the OEG and ACOG are radioactive element-powered and do not require a constant resupply of yet another battery as the M68 requires. However OEG uses one eye seeing into a blocked or occluded red dot and some of my men simply cannot use this sight because they don't have binocular vision. ACOG is a see-through sight, but its expensive, about $1,000 each. Both OEG and ACOG are too close to the single lens of the AN/PVS-7B NVG to work in conjunction with them. However, they might work if you were wearing a AN/PVS-14 night vision MONOCULAR and one eye looked into the OEG and the other eye through the night vision mono-goggle (NVM). I prefer the mono-goggle approach in general because it gives you more peripherial vision, keeps your eyes cooler and not fogging up, and gives more depth perception than both eyes under image intensifiers.

The M68 DOES interface wearing NVGs...since the AN/PVS-7B is the "bread and butter" NVG for the U.S. military. The M68 and NVG combination is the cheapest,simplest day/night fire capability---you could move at night with NVGs. Engage targets with the M68 interface. During the day, engage with regular eyes and the M68. In those twilight situations, you mount a flashlight to verify the target, engage with the M68 red dot. If you want the ability to convince a foe to surrender, you add a visible light laser beam or the "SUPER" AN/PAQ-2000 I proposed earlier. If its darker you can aways put on NVGs.

Head spinning yet?

In fact, if you keep the outer lens cover closed on the M68, it works just like an OEG, this is a good feature if the enemy is using laser weapons against you. The only drawback is that you have to use a lithium DL 1/3N battery to power the M68.

What you are supposed to do in those situations where its dark and you can see with your eyes but its too dark to shoot with iron sights or the M68 reflex red dot, is to attach the AN/PVS-14 NVM BEHIND the M68 to get a starlight scope capability with less bulk than the AN/PVS-4 NVD.

AN/PVS-14 NVM mounted directly behind M68 CCO

As you can see in the photo above, lightweight thermal sights are also being fielded in elite U.S. Army infantry units to effect superior target surveillance, acquisition and engagement.


What I've found to my chagrin is that its easy to to fail to turn the M68 off---so when you come to turn it back on, the battery is DEAD. The low-tech solution is to turn the M68 off, and where the knob is oriented paint a red mark with oil-based model paint in the depression in the knob. Paint another mark at the top of the M68 body, so when the two marks are together you know the power has been turned OFF (Red = stop).

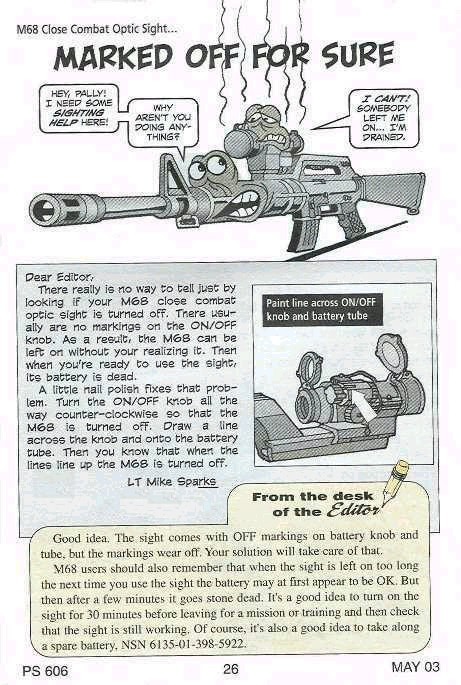

So we wrote to U.S. Army PS magazine and LT Sparks had the M68 CCO suggestion published as an article with legendary artwork by Joe Kubert! Take a look below!
